▣ KEY FEATURES

- Elegant and stylish

- LED lighting effects



- 6 security sensors and 4 safety sensors



- Adjustable glass wing height to increase security level (900/1200/1400/1600/1800)



- 3 level security mode (High, Medium, Low)



- One way or Two way traffic (adjustable)

- Wide range of customization options (colors, materials, finishes)

- Glass wings : 10 mm Tempered glass

- Wide gate for disabled can be added (SR-1400W)

- Supports manual control (consecutive pass, temporary pass, one by on pass)

 ▣ PRODUCT SPECIFICATION

● Unit  Dimensions

  1. Housing length : 1,380 mm



  2. Housing height : 1,000 mm

  3. Housing thickness :  300 mm



  4. Passage width  : 550~600 mm

  5. Glass Wing height : 900~1800 mm

● Unit operating mode

  Bi-parting Sliding Type

● Material (Finishing materials/colors can be changed)

  1. Top : PMMA

  2. Front : PMMA and painted steel

  3. Side : Painted Steel

  4. Wings : 10 ~ 12 mm tempered glass

● Passage

  40 - 60 per minute

● Indicator

  LED Display (upper, front)

- Motor

  BLDC Motor

- Power

  AC 220/240V 50/60Hz / 350W

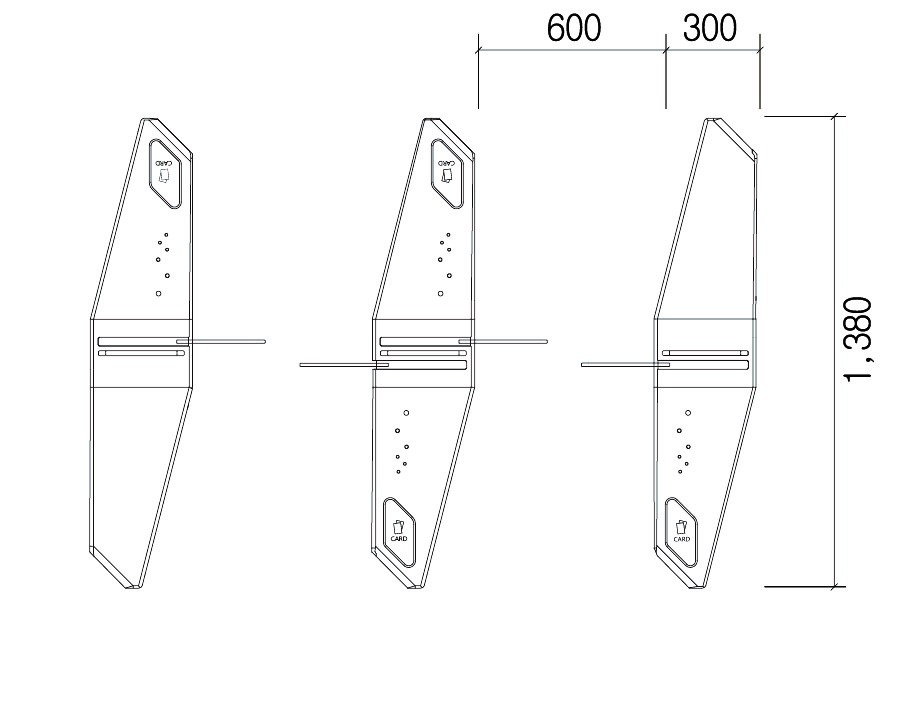

[Upper View]

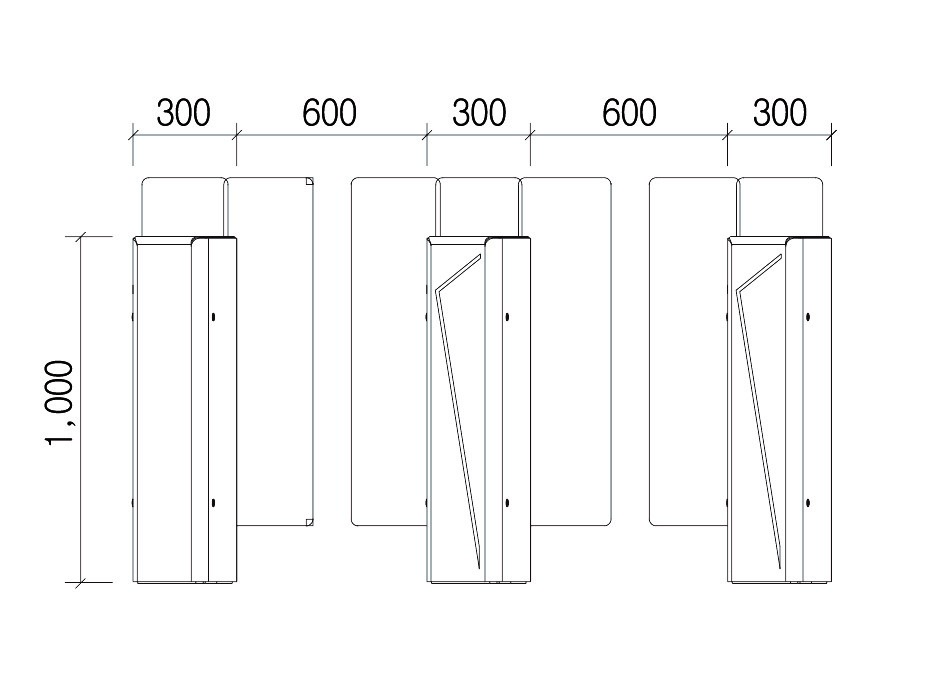

[Front View]
